NBHSY104:

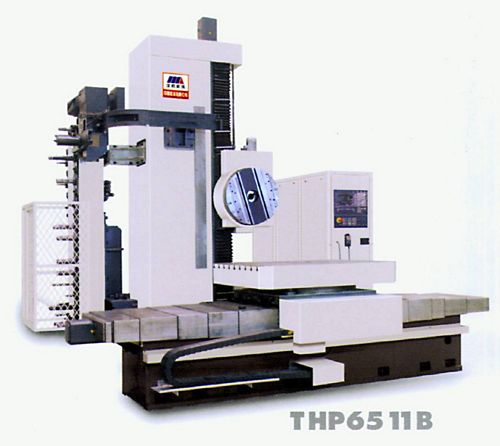

New, China Czech THP6511B CNC Horizontal Boring & Milling Machine
- Spindle Diameter 110 mm
- Table Size 1000x1250 mm (Opt. 1250x1250, 1250x1400)
- Max Load on Table 5000 kg
- Spindle Taper ISO7:24 No.50
- Spindle Speed 10-2000 RPM, Max Torque 1300 Nm
- Distance Between Spindle Axis And Table Top 60-1560 mm
- Min Distance Between Spindle End And Table 487 mm
- Table X Traverse 2000 mm (Opt. 2500, 3000)
- Headstock Y Travel 1500 mm
- Column Z Travel 1200 mm (Opt. 2000)
- Spindle W Travel 550 mm
- Facing Plate Slide U Travel 140 mm
- Rotation B of Rotary Table 360 Deg
- Traverse Speed (mm/min): X / Y / Z 1-6000, W 1-2000, U 1-1000, B 0-1.5 r/min
- Rapid Traverse: X / Y / Z 9 m/min, W / U 2.4 m/min, B 2.5 r/min
- Tool Magazine Capacity 40
- Power of Main Motor 17 kW (22.5 kW for 30 min continuous)
- Positioning Accuracy X / Y / Z: +/- 0.008 mm Over Full Length (Opt. +/- 0.005)
- Positioning Accuracy B (4 X 90 Deg): +/- 7.5" (Opt. +/- 2")
- Repeatability X / Y / Z: +/- 0.005 mm (Opt. +/- 0.0025), B (4 X 90 Deg): +/- 2"
- CNC System Siemens 840D (Opt. Fanuc 18i)
- Overall Dimensions: 5,555 mm (L) x 4,155 mm (W) x 4,078 mm (H)
- Weight approximately 21 ton
If you require additional information on this machine
or on any other new or used horizontal borer (horizontal boring mill, horizontal boring machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
