NBISR003:

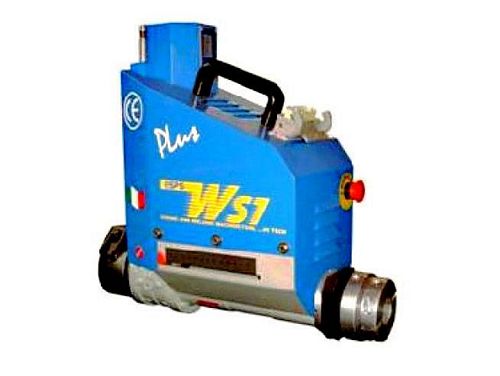

New, Sir WS1 Plus Boring and Welding Machine
- Boring Diameter 22mm - 180mm (1.45" - 7.09")
- Welding Diameter 25mm - 250mm (0.98" - 9.84")
- Tool Holder Shaft dia 35mm (1.38")
- Tool Holder Shaft length 2,380 usable mm (N° 3 connectable bars 1000 x 1000 x 540mm)
- Welding Technology: SPIRAL (continuous with variable step)
- Longitudinal Stroke: Unlimited with step of 120mm (4.7")
- Rotation Motor CC NORMA CE
- Feed Motor CC NORMA CE
- Feed: ELECTRICAL - MECHANICAL
- Output Torque At the Bar: 120 Nm (266 RPM)
- Max. Speed 266 RPM
- Feed Rate 0 - 0.5 mm (0 - 0.02 in/rev) RPM
- Max. Feed Speed 390 mm/min
- Removal material 23 cm³/min
- Drive Unit Weight 20 kg
If you require additional information on this machine
or on any other new or used in-situ boring machine (in-situ borer, in-situ boring, portable boring machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
