NBISR004:

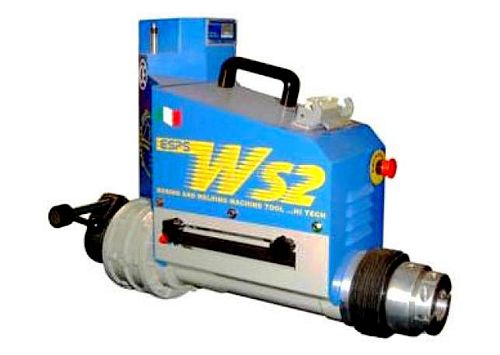

New, Sir WS2 Boring and Welding Machine
- Boring diameter 22mm - 400mm (0.87" - 15.75")
- Welding diameter 25mm - 400mm (0.98" - 15.75")
- Tool holder shaft dia 40mm (1.57")
- Tool holder shaft length 2,600 usable mm (N° 3 connectable bars 1000 x 1000 x 730mm)
- Welding technology : SPIRAL (continuous with variable step)
- Longitudinal stroke: Unlimited with step of 220mm (8.66")
- Rotation motor CC NORMA CE
- Feed motor CC NORMA CE
- Feed: ELECTRIC - MECHANICAL
- Output torque at the bar: 290 Nm (266 RPM)
- Max. speed 266 RPM
- Feed rate 0 - 0.5 mm (0 - 0.02 in/rev) RPM
- Max. feed speed 285 mm/min
- Removal material 23cm³/min
- Drive unit weight 34 kg
If you require additional information on this machine
or on any other new or used in-situ boring machine (in-situ borer, in-situ boring, portable boring machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
