NBVQE003:

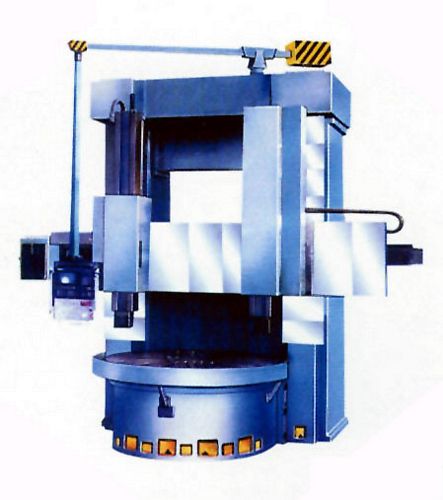

New, China CQK5240B CNC Double Column Vertical Lathe
- Table diameter 2830mm
- Max. cutting diameter 4000mm
- Control FANUC Oi-TD
- Max. work piece height 2000mm
- Max. work piece weight 10000 kg
- Max. cutting force of right vertical head 29400 N
- Max. cutting force of left vertical head 26460 N
- Max. torque of table 55860 Nm
- Range of table speeds 2 - 63 RPM, 16 steps
- Feed rates (left head) 0.20 - 145 mm/min, 18 steps (conventional/manual control)
- Feed rates (right head) 0.1 - 1000 mm/min, variable (CNC control)
- Travel distance of cross rail 1700mm
- Travel distance of rail head: horizontal 2150mm; vertical 1250mm
- Speed of cross rail 350 mm/min
- Rapid traverse of rail head 1550 mm/min
- Swivel angle of rail head ±30°
- Dimension of tool 40x50mm
- Main motor 55 kW
- Overall Dimensions: 6,780 mm (L) x 5,200 mm (W) x 5,975 mm (H)
- Weight approximately 38 ton
If you require additional information on this machine
or on any other new or used vertical boring mill (vtl,vbm, vertical borer, vertical lathe, vertical boring machine, vertical turret lathe, vertical boring mill, vertical turning lathe, vertical boring mill) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
