NDRSY005:

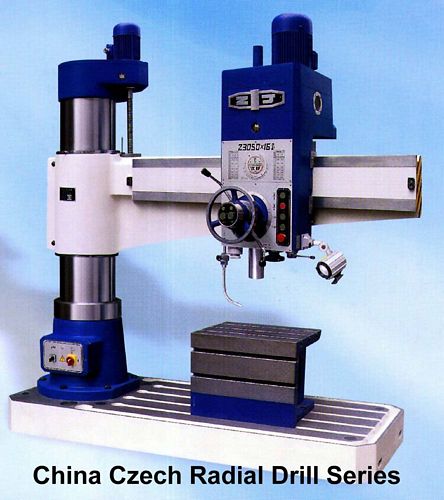

New, China Czech Z3050 x 12/1 Radial Drill
- Maximum drilling diameter 50mm
- Distance between spindle axis & column 350 - 1250mm
- Spindle travel 315mm
- Distance between spindle nose and working surface of base plate 320 - 1220mm
- Spindle taper No. 5
- Range of spindle speeds 25 - 2000rpm
- Number of spindle speeds 16
- Range of spindle feeds 0.04 - 3.2 mm/r
- Number of spindle feeds 16
- Table size 500 x 630mm
- Arm length 2140mm
- Travel of spindle head 1250mm
- Power of main motor 4 kW
- Overall Dimensions: 2,500 mm (L) x 1,060 mm (W) x 2,655 mm (H)
- Weight approximately 3.5 ton
If you require additional information on this machine
or on any other new or used radial drill (radial drilling machine, radial arm drill, radial arm drilling machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
