Radial Drill

NDRSY029:

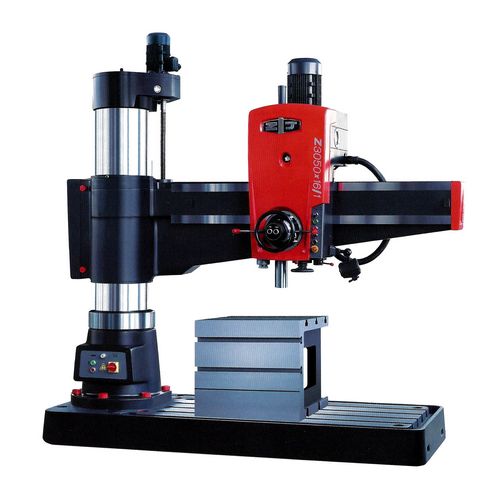

New, China Czech Z3063 x 20/1 Radial Drill (New Design)

Maximum drilling diameter 63mm
Distance between spindle axis & column 450-2000mm
Distance between spindle nose and working surface of base plate 400-1600mm
Spindle travel 400mm
Spindle taper No. 5
Range of spindle speeds 20-1600rpm (16 steps)
Range of spindle feeds 0.04-3.2 mm/r (16 steps)
Worktable dimensions: 800 x 630 x 500 mm
Travel of spindle head 1550mm
Max torque of spindle 980 Nm
Lifting distance of swing arm 800mm
Power of main motor 5.5 Kw
Overall Dimensions: 3,080 mm (L) x 1,250 mm (W) x 3,205 mm (H)
Weight approximately 7.0 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial arm drill machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
