NHBDH008:

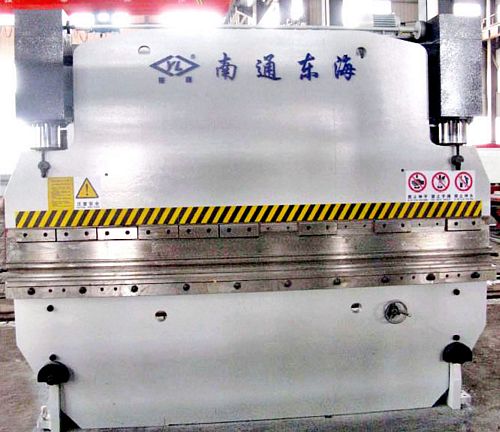

New, China WE67Y-100/2500 Press Brakes
- Nominal Pressure 1000 KN
- Working Width 2500 mm
- Distance Between Columns 2050 mm
- Open Height 330 mm
- Throat Depth 320 mm
- Ram Stroke 150 mm
- Stroke Adjustments 120 mm
- Table Height 850 mm
- Main Power 7.5 kW
- Gear pump 16 L/min
- Work Speed:
Approach Speed 80 mm/s
Working Speed 10 mm/s
Return Speed 58 mm/s
- Overall Dimension (L x W x H) 2600 x 1400 x 2300 mm
If you require additional information on this machine
or on any other new or used press brake (hydraulic press brake, mechanical press brake, sheet metal brake, angle bending machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
