NHBDH010:

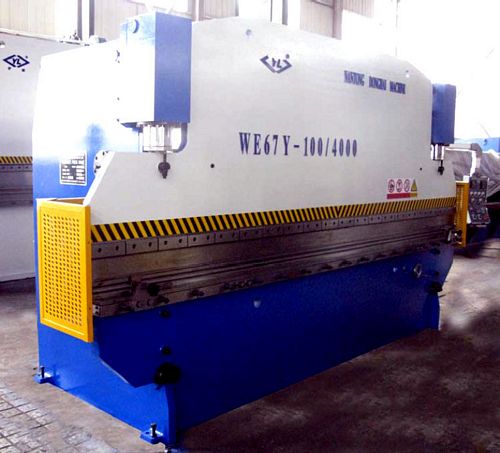

New, China WE67Y-100/4000 Press Brakes
- Nominal Pressure1000 KN
- Working Width 4000 mm
- Distance Between Columns 3100 mm
- Open Height 330 mm
- Throat Depth 320 mm
- Ram Stroke 150 mm
- Stroke Adjustments 120 mm
- Table Height 850 mm
- Main Power 7.5 kW
- Work Speed:
- Approach Speed 80 mm/s
- Working Speed 10 mm/s
- Return Speed 58 mm/s
- Overall Dimension (L x W x H) 4100 x 1400 x 2480 mm
If you require additional information on this machine
or on any other new or used press brake (hydraulic press brake, mechanical press brake, sheet metal brake, angle bending machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
