NHBDH021:

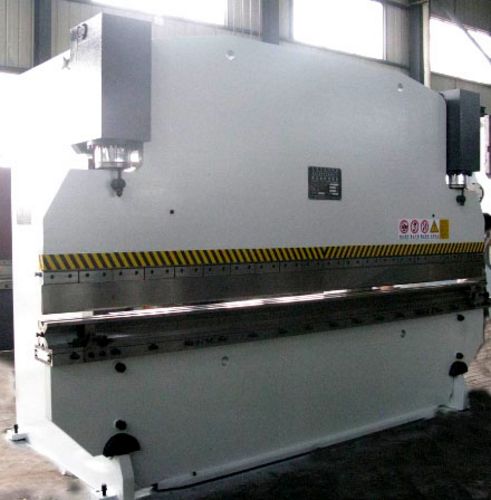

New, China WE67Y-200/5000 Press Brakes
- Nominal Pressure 2000 KN
- Working Width 5000 mm
- Distance Between Columns 4100 mm
- Open Height 480 mm
- Throat Depth 400 mm
- Ram Stroke 200 mm
- Stroke Adjustments 150 mm
- Table Height 1100 mm
- Main Power 15 kW
- Work Speed:
- Approach Speed 70 mm/s
- Working Speed 7 mm/s
- Return Speed 35 mm/s
- Overall Dimension (L x W x H) 5100 x 2000 x 3150 mm
If you require additional information on this machine
or on any other new or used press brake (hydraulic press brake, mechanical press brake, sheet metal brake, angle bending machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
