NHBDH028:

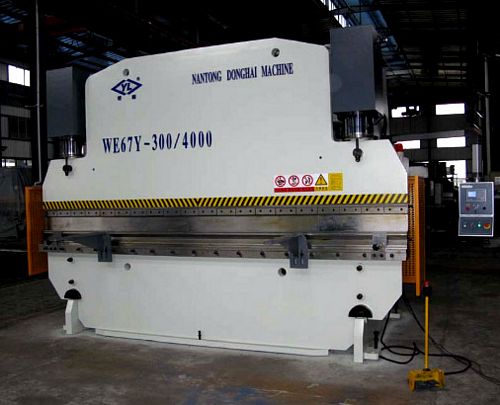

New, China WE67Y-300/4000 Press Brakes
- Nominal Pressure 3000 KN
- Working Width 4000 mm
- Distance Between Columns 3200 mm
- Max. Opening Height 435 mm
- Throat Depth 350 mm
- Ram Stroke 200 mm
- Stroke Adjustments 150 mm
- Table Height 1000 mm
- Main Power 22 Kw
- Work Speed:
Approach Speed 80 mm/s
Working Speed 8 mm/s
Return Speed 35 mm/s
- Gear pump 40 L/min
- Overall Dimension (L x W x H) 4100 x 1850 x 3285 mm
If you require additional information on this machine
or on any other new or used press brake (hydraulic press brake, mechanical press brake, sheet metal brake, angle bending machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
