NHBDH032:

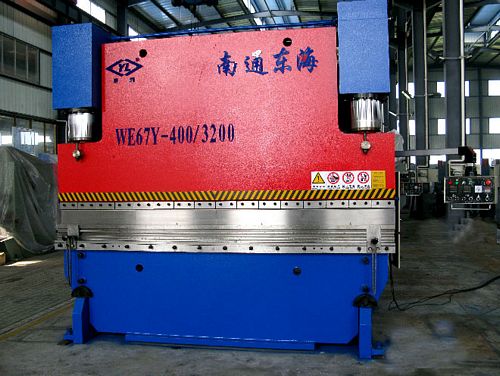

China WE67Y-400/3200 Press Brakes
- Nominal Pressure 4000 KN
- Working Width 3200 mm
- Distance Between Columns 2600 mm
- Open Height 580 mm
- Throat Depth 400 mm
- Ram Stroke 250 mm
- Stroke Adjustments 200 mm
- Table Height 1000 mm
- Main Power 37 kW
- Work Speed:
Approach Speed 80 mm/s
Working Speed 9 mm/s
Return Speed 50 mm/s
- Overall Dimension (L x W x H) 3300 x 2000 x 3230 mm
- Gear pump 63 L/min
- Weight about 21 tons
If you require additional information on this machine
or on any other new or used press brake (hydraulic press brake, mechanical press brake, sheet metal brake, angle bending machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
