NHRBK014:

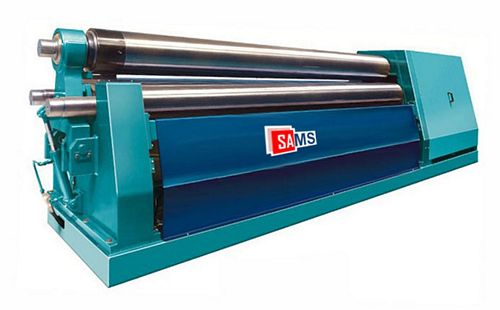

New, Sams B3 2621 3 Rolls Double Pinch Bending Machine
- Length of rolls 2600mm
- Rolling capacity 9mm (at 1075 diameter)
- Prebending capacity 7mm (at 1075 diameter)
- Prebending capacity 5mm (at 280 diameter)
- Top roll diameter 215mm
- Bottom rolls 195mm
- Main motor 10.0 Hp
- Overall Dimensions: 4,200 mm (L) x 1,000 mm (W) x 1,100 mm (H)
- Weight approximately 4.0 ton
If you require additional information on this machine
or on any other new or used plate bending rolls (bending machine, plate bending, plate roll, bending roll, plate bending roll, plate rolling machine, sheet bender, plate bender, bending machines, bending rolls, plate bending rolls) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
