Sunshine Innovation Sams Plate Bending Rolls

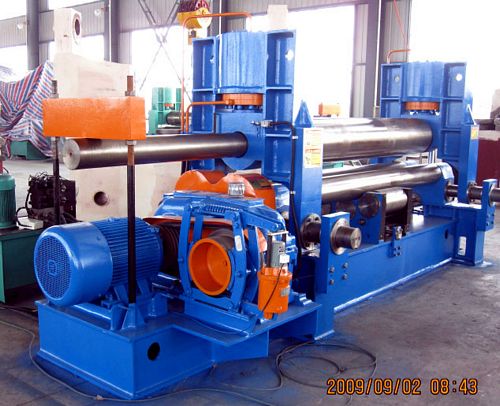

China W11S-25x2500 Plate Bending Roll

NHRYL182:

New, China W11S-25x2500 Plate Bending Roll

  • Rolling thickness 25mm x 2500mm (at dia. 1000mm)
  • Prebending thickness 20mm x 2500mm (at dia. 1000mm)
  • Type: Top roll NC controlled (Economic NC)
  • Top roll pressure 190 ton
  • Top roll diameter 380mm
  • Bottom rolls diameter 220mm
  • Distance between bottom rolls center-to-center 360mm
  • Plate width 2500mm
  • Length of working rolls 2600mm
  • Rolling speed ≈3.5 m/min
  • Top roll pressure speed 120 mm/min
  • No. of supporting roller: 1 group, 4 rollers per group
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Main motor 22 Kw
  • Hydraulic motor 7.5 Kw
  • Moving motor 4 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
