NHRYL190:

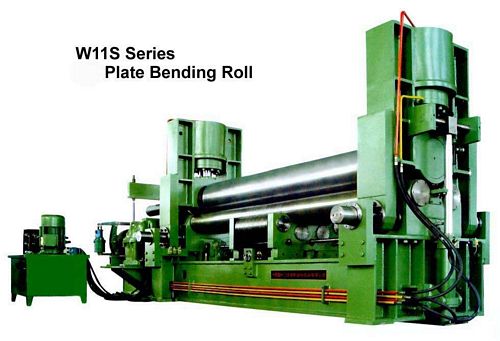

W11s-45x2500 Upper-roller All-directional Adjusting Roll-bending Machine
- Upper roller force 430 tons
- Diameter of the upper roller F520mm
- Diameter of the lower roller F290mm
- Central distance between bottom shafts 500mm
- Max. width of coiled plate 2500mm
- Length of working rolls 2600mm
- Max. thickness of coiled plate:
Symmetry coiling thickness T45 x B2500 x 1800mm (Q235-A)
Asymmetry coiling thickness T40 x B2500 x 1800mm(Q235-A)
- Coiling speed ˜3.5m/min
- Top roller pressure speed ˜130mm/min
- Supporting rollers: one group, four rollers/group
- Drive coil power 55kW
- Hydraulic system motor 22kW
- Horizontally motor power 7.5kW
If you require additional information on this machine
or on any other new or used plate bending rolls (plate roll, bending roll, plate bending roll, plate rolling machine, sheet bender, plate bender) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
