NHRYL191:

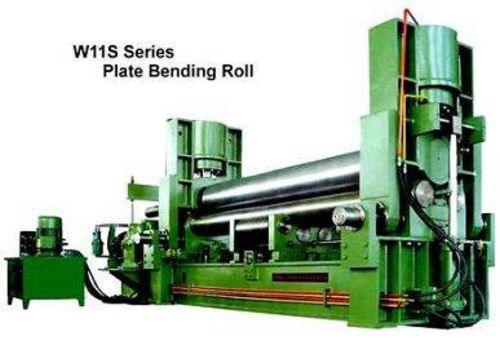

New, China W11S-8x2000 Plate Bending Roll
- Rolling 8mm x 2000mm (at 500mm Diameter)
- Prebending 6mm x 2000mm (at 500mm Diameter)
- Top Roll Diameter 235mm
- Bottom Rolls Diameter135mm
- Upper Roller Force 50 Tons
- Bottom Rolls Center-to-Center 180mm
- Max Plate Width 2000mm
- Length of Working Rolls 2100mm
- Rolling Speed �4m/min
- Capacity <=245 MPa
- Drive Coil Power 4kW
- Hydraulic System Motor 3kW
- Horizontal Movement Motor Power 1.1kW
If you require additional information on this machine
or on any other new or used plate bending rolls (bending machine, plate bending, plate roll, bending roll, plate bending roll, plate rolling machine, sheet bender, plate bender, bending machines, bending rolls, plate bending rolls) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
