NHRYL207:

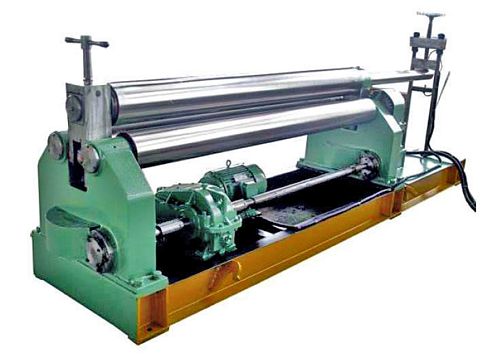

New, China W11-6x2000 Plate Bending Roll
- Plate thickness 6mm
- Plate width 2000mm
- Pressure 245 Mpa
- Full-loading min coiling diameter 500mm
- Top roll diameter 200mm
- Bottom rolls diameter 170mm
- Top roll material 45# forged steel
- Bottom rolls center-to-center 260mm
- Coiling speed: about 4 m/min
- Main motor 5.5 kW
- Assistant motor 4 kW
If you require additional information on this machine
or on any other new or used plate bending rolls (bending machine, plate bending, plate roll, bending roll, plate bending roll, plate rolling machine, sheet bender, plate bender, bending machines, bending rolls, plate bending rolls) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
