Section Bending Machine

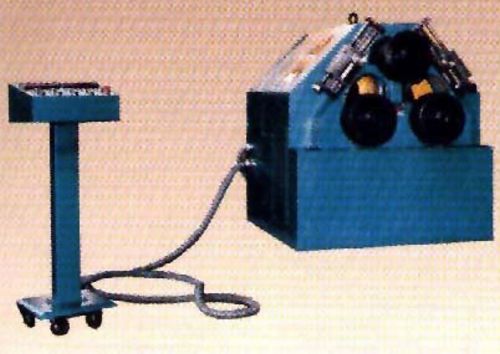

China CDW24S-6 Section Bender

NHSEA001:

New, China CDW24S-6 Section Bender

  • Max. section modulus 6 cubic cm
  • Bending speed 6m/min
  • Angle Steel Leg In:- Max. section size 45 x 45 x 5 mm          Min. bending dia at max size 700mm          Min. section size 20 x 20 x 3 mm          Min. bending dia at min size 400mm
  • Angle Steel Leg Out:- Max. section size 50 x 50 x 6 mm           Min. bending dia at max size 700mm              Min. section size 20 x 20 x 3 mm                    Min. bending dia at min size 400mm
  • U-Steel Leg Out:- Size 8       Min. bending radium 400mm
  • U-Steel Leg In:- Size 8          Min. bending radium 560mm
  • Flat Beam on Flat:- Max. section size 100 x 18 mm           Min. bending radium 500mm
  • Flat Beam on Edge:- Max. section size 50 x 12 mm            Min. bending radium 500mm
  • Dimensions: (LxWxH) 1210mm x 950mm x 1000mm

If you require additional information on this machine or on any other new or used section bending machine (ring roller, ring rolling machine, section roller, angle bending roll, section bending machine, section former, section forming machine, section bender, angle roll) that we carry, please let us know. We would be more than happy to assist.

For sales enquiry, please contact Zhongyang Engineering through telephone, fax or email.
