NLCSY004:

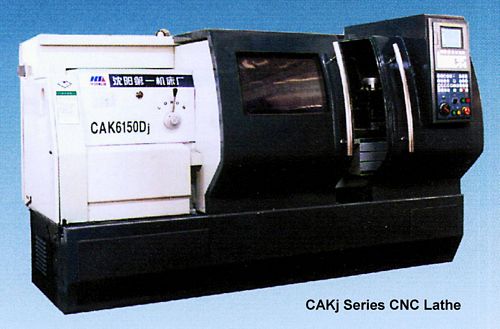

New, China CAK6150j CNC Lathe
- Swing Over Bed 500 mm
- Max Workpiece Length 640 / 890 / 1390 / 1900 mm
- Swing Over Saddle 300 mm
- Max Cutting Length 600 / 850 / 1350 / 1860 mm
- Max Cutting Diameter 500 mm
- Manual Chuck Diameter 250 mm
- Spindle Bore Dia 70 mm, Nose A8
- Spindle Speed 12 Steps 40-1800 RPM
- Two Speed Motor Power 6.5/8 kW
- Toolpost Traverse X/Z: 5/10 m/min (If Workpiece Length=1900 mm, Z=6 m/min)
- Indexing 4-Way Electric Toolpost Traverse 3 sec
- Stroke of X Axis 250 mm
- Stroke of Z Axis 600 / 850 / 1350 / 1860 mm
- Dia of Tailstock Quill 75 mm
- Stroke of Tailstock Quill 150 mm
- Tailstock Taper MT5
- Toolpost Rotative Positioning Repeatability Accuracy 0.008 mm
- Workpiece Accuracy IT6-IT7
- Surface Roughness Ra1.6
- Size of Tool Shank 25x25 mm (Square), 25 mm Dia (Bore)
If you require additional information on this machine
or on any other new or used cnc lathe (cnc turning machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
