NLLAM016:

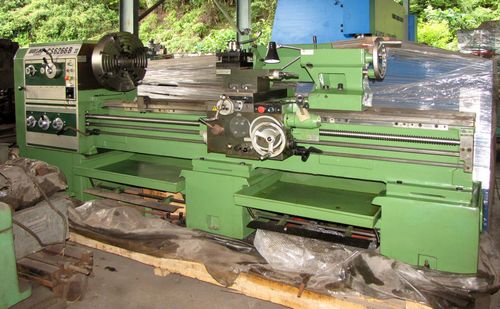

New, China CS6166Bx3000 Straight Bed Lathe
- Swing over bed 660mm
- Swing over cross slide 420mm
- Between centres 3000mm
- Max. turning length 2950mm
- Spindle bore diameter 82mm
- Spindle nose ISO 702/II No. 8 short cam lock type
- Spindle speeds 9 - 1600 rpm, 24 steps
- Travel of compound rest 145mm
- Travel of cross slide 310mm
- Tool section 25 x 25mm
- X-axis feeds 93 kinds, 0.012 - 2.73 mm/rev
- Z-axis feeds 93 kinds, 0.028 - 6.43 mm/rev
- Metric threads 48 kinds, 0.5 - 224 mm
- Inch threads 49 kinds, 72 - 1/8 TPI
- Module threads 42 kinds, 0.5 - 112 mm
- Diametric pitch threads 45 kinds, 56 - 1/4 DP
- Diameter of tailstock sleeve 75mm; travel of tailstock sleeve 150mm
- Taper of tailstock sleeve Morse No. 5
- Main motor 7.5 kW; rapid traverse motor 0.25 kW; coolant pump 0.12 kW
- Overall Dimensions: 4,632 mm (L) x 975 mm (W) x 1,350 mm (H)
- Weight approximately 3.0 ton
If you require additional information on this machine
or on any other new or used lathe (lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
