NLLDM022:

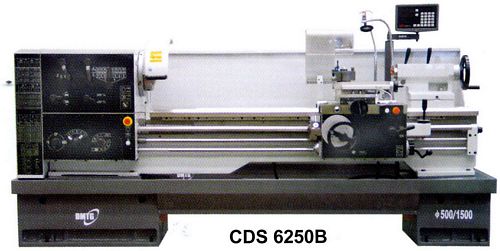

New, China CDS6250B/750 High Speed Lathe
- Swing over bed 500mm
- Swing over saddle 290mm
- Swing in gap 760mm
- Between centres 750mm
- Spindle bore 82mm
- Spindle nose D8
- No. of spindle speed 16
- Spindle speed ranges 26 - 2000 rpm
- Max. spindle motor 7.5 kW (10 HP)
- Width of bed 394mm
- Cross slide travel - X axis 355mm
- Travel of top slide 150mm
- Max. dimension of tool shank 25 x 25mm
- Imperial pitches 7 / 16 - 80 TPI
- Diametric pitches 7 / 8 - 160 DP
- Metric pitches 0.35 - 80mm
- Module pitches 0.2 - 40 MOD
- Tailstock quill diameter 75mm
- Tailstock quill taper No. 5 MT
- Tailstock quill travel 150mm
If you require additional information on this machine
or on any other new or used lathe (lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
