NLLDM043:

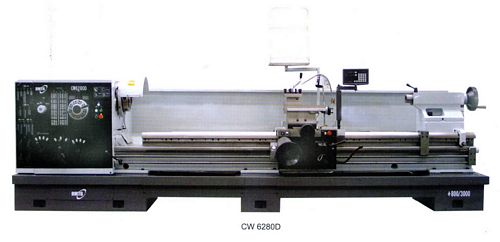

New, China CW6263D/3000 Gap-Bed Lathe
- Swing over bed 630mm
- Swing over saddle 350mm
- Swing in gap 800mm
- Between centres 3000mm
- No. of spindle speeds 18
- Spindle speed ranges 7.5 - 1000 rpm
- Max. spindle motor 11 kW (15 HP)
- Width of bed 550mm
- Cross slide travel - X axis 493mm
- Travel of top slide 200mm
- Max. dimension of tool shank 30 x 30mm
- Imperial pitches 1 - 56 TPI
- Diametric pitches 1 - 80 DP
- Metric pitches 0.4 - 24mm
- Module pitches 0.5 - 56 MOD
- Tailstock quill diameter 100mm
- Tailstock quill taper No. 6 MT
- Tailstock quill travel 240mm
If you require additional information on this machine
or on any other new or used lathe (lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
