NLLDM124:

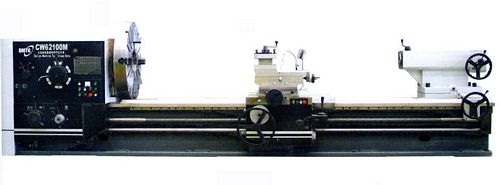

New, China CW62140M/4000 Gap Bed Lathe
- Swing over bed 1400mm
- Between centres 4000mm
- Swing over saddle 1030mm
- Swing in gap 1800mm
- Gap length (from spindle nose) 600mm
- Spindle bore 130mm
- Width of bed 755mm
- Taper of spindle bore 140mm (1:20)
- Spindle nose A-15
- No. of spindle speed 21
- Spindle speed ranges 3.15 - 315 rpm
- Max. spindle motor 22 kW
- Coolant pump motor 0.125 kW
- Cross slide travel - X axis 725mm
- Travel of top slide 300mm
- Max. dimension of tool shank 45 x 45mm
- Cross feed 0.05 - 6 mm/rev
- Longitudinal feed 0.1 - 12 mm/rev
- Range of diametric pitches 1/2 - 56 DP
- Range of metric pitches 1 - 120mm
- Range of module pitches 0.5 - 60 MOD
- Tailstock quill diameter 160mm
- Tailstock quill taper 80mm / 1:20
- Tailstock quill travel 300mm
- Weight with 3m b.c. 11,000 kg
- Additional weight par 1m b.c. 1000 kg
- Overall Dimensions: 6,950 mm (L) x 2,010 mm (W) x 1,980 mm (H)
If you require additional information on this machine
or on any other new or used lathe (lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
