Sunshine Innovation Sams Lathe

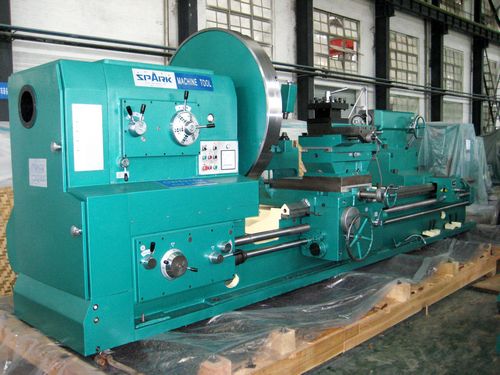

China CW62160/3000 Lathe

NLLSP004:

New, China CW62160/3000 Lathe

  • Between centers 3000mm
  • Swing over bed 1600mm
  • Swing over carriage 1280mm
  • Swing over gap 2110mm
  • Width of gap 610mm
  • Max machining length 2800mm
  • Width of bedways 970mm
  • Max weight between centers 6000 kg
  • Spindle nose ISO A2-15
  • Spindle taper: metric no. 140
  • Spindle bore 130mm
  • Spindle speeds 2.5 - 250 rpm (21 steps)
  • Travel of cross slide 880, middle slide 400mm, upper slide 200mm
  • Rapid traverse (longitudinal) 3740 mm/min, cross slide 1870 mm/min, top slide 935 mm/min
  • No. and range of feeds: no. 97
  • Longitudinal 0.064 to 12 mm, cross slide 0.032 to 6 mm, top slide 0.016 - 3 mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
