NLLSY001:

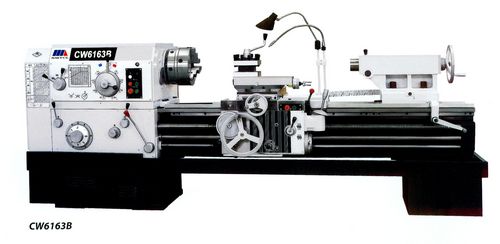

New, China CW6163B/750 Straight Bed Lathe
- Between centers 750mm
- Swing over bed 630mm
- Swing over saddle 350mm
- Spindle bore and nose Ø104; D11
- Taper in spindle nose and centre Ø120
- Range of spindle speed 7.5 - 1000 r/min (18 kinds)
- Range of longitudinal feed 0.05 - 24.3 mm/r (64 kinds)
- Range 1:1 = 0.1 - 1.52 mm/r
- Range 16:1 = 1.6 - 24.3 mm/r
- Longitudinal and cross feed rate 1/2
- Rapid traverse of carriage 4000 mm/min
- Lead screw pitch 12 (Metric); 1/2"
- Threads: Metric 1 - 240 mm (50 kinds); Inch 14 - 1 TPI (26 kinds)
Module 0.5 - 120 mm; (53 kinds); Diametric 28 - 1 DP (24 kinds)
- Max cross travel of lower slide 315mm
- Max travel of top slide 200mm
- Max travel of quill of tailstock 250mm
- Taper of quill of tailstock Morse No. 5
- Hardness of bed guideways 550mm RC52
- Main motor 11 kW
- Rapid motor 1.1 kW
- Cooling pump 120 W
- Overall Dimensions: 2,890 mm (L) x 1,380 mm (W) x 1,450 mm (H)
- Weight approximately 3.4 ton
If you require additional information on this machine
or on any other new or used lathe (lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
