NLLSY005:

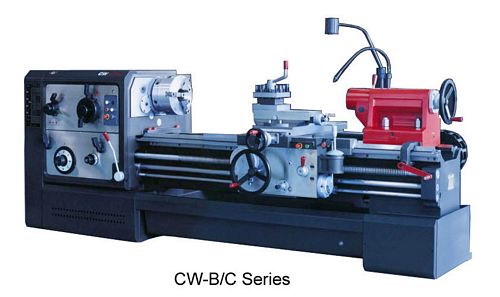

New, China CW6180B Straight Bed Lathe
- Swing Over Bed 800 mm
- Swing Over Saddle 480 mm
- Max Workpiece Length 1500 / 3000 / 4000 / 5000 / 6000-14000 mm
- Width of Bed 600 mm, Hardness RC52
- Center Height 400 mm
- Spindle Speed 5.4-720 RPM, 18 Steps
- Threads: Metric 1-240mm, Module 0.5-120mm, Withworth 1-14 TPI, DP 1-28
- Spindle Bore 104 mm, Spindle Nose D-11
- Longitudinal Feed 0.05-24.3 mm/r
- Pitch And Diameter of Leadscrew: 12 / 55 mm
- Travel of Lower Slide / Top Slide: 500 / 200 mm
- Swiveling Angle of Lower Slide +/- 90 Deg
- Travel of Tailstock Quill 250 mm
- Diameter of Tailstock Quill 100 mm
- Taper of Tailstock Quill MT 5
- Main Motor 11 kW (Optional 15 kW)
If you require additional information on this machine
or on any other new or used lathe (used lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, oil country lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
