NLLSY018:

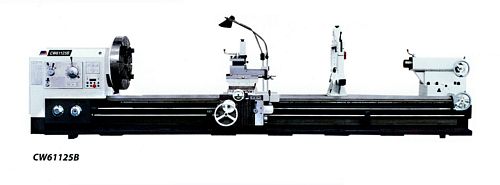

New, China CW61125B Straight Bed Lathe
- Swing Over Bed 1250 mm
- Swing Over Saddle 865 mm
- Max Workpiece Length 1500 / 3000 / 5000 / 6000-15000 mm
- Width of Bed 750 mm, Hardness RC52
- Center Height 625 mm
- Spindle Speed 3.15-315 RPM, 21 Steps
- Threads: Metric 1-120mm, Module 0.5-60mm, Withworth 1/4-24 TPI, DP 1/2-56
- Spindle Bore 130 mm, Spindle Nose A-15
- Longitudinal Feed 0.1-12 mm/r
- Pitch And Diameter of Leadscrew: 12 / 70 mm
- Travel of Lower Slide / Top Slide: 520 / 300 mm
- Swiveling Angle of Lower Slide +/- 90 Deg
- Travel of Tailstock Quill 300 mm
- Diameter of Tailstock Quill 160 mm
- Taper of Tailstock Quill MT 6
- Main Motor 22 kW
If you require additional information on this machine
or on any other new or used lathe (used lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, oil country lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
