NLLSY220:

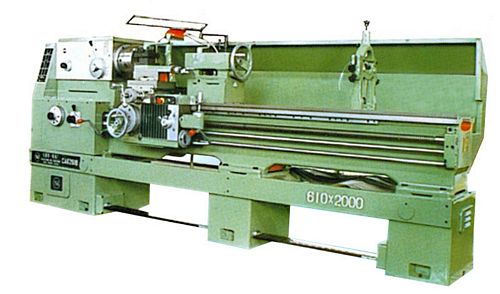

New, China CA6266B Gap Bed Lathe
- Swing over bed 660mm
- Swing over saddle 400mm
- Swing over gap 870mm
- Width of gap 210mm
- Between centers 750/650mm, 1000/900mm, 1500/1400mm, 2000/1900mm, 3000/2900mm
- Width of bed or hardness: 400mm / RC52
- Section of turning tool 25 x 25mm
- Spindle speed 10 - 1400 r/min (24)
- Spindle bore 80mm; nose A28
- Inner taper of spindle nose .90 (1:20)
- Longitudinal feed of spindle speed per revolution (64 kinds):
0.11 - 1.6 mm/r (normal); 0.028 - 0.11 mm/r (fine); 1.76 - 6.4 mm/r (coarse)
- Cross feed of spindle per revolution (64 kinds):
0.05 - 0.8 mm/r (normal); 0.014 - 0.05 mm/r (fine); 0.88 - 3.2 mm/r (coarse)
- Travel of cross slide or compound rest: 420 / 140mm
- Swing angle of turret turnplate ± 90°
- Rapid travel of turret: longitudinal 4 m/min; cross rapid speed 2 m/min
- Travel of tailstock quill 150mm
- Diameter of tailstock quill 75mm
- Taper of tailstock quill Morse No. 5
- Threads: Metric 1 - 192mm; Whitworth 1/2 - 24 TPI
Module 0.25 - 48mm; Diametric 1/2 - 96 DP
- Main motor 7.5 kW
If you require additional information on this machine
or on any other new or used lathe (lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
