NLLSY239:

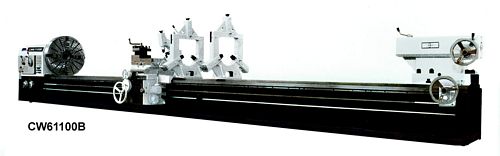

New, China CW61100B/15000 Straight Bed Lathe
- Between centers 15000mm
- Swing over bed 1000mm
- Swing over saddle 610mm
- Spindle bore 130mm
- Taper of spindle nose Metric 140
- Type of spindle speed (forward) 21 kinds; (reverse) 12 kinds
- Range of spindle speeds: 3.15 - 315 r/min (forward); 3.5 - 278 r/min (reverse)
2 - 200 r/min (forward); 2.24 - 178 r/min (reverse)
- Range of feed 56 kinds
- Longitudinal 0.1 - 12 mm; Cross 0.05 - 6 mm
- Upper turret 0.025 - 3 mm
- Threads: Metric 1 - 120 mm (44 kinds); Inch 24 - 1/4 TPI (31 kinds)
Module 0.5 - 60 mm (45 kinds); Diametric 1/2 - 56 DP (38 kinds)
- Max travel of gap 14,950mm
- Max cross travel of lower turret 520mm; upper turret 300mm
- Rapid travel of turret: Cross 3740 mm/min; Longitudinal 1870 mm/min
- Middle turret 935 mm/min
- Quill of tailstock diameter 160mm
- Max travel of quill of tailstock 300mm
- Taper of quill of tailstock Morse No. 6
- Main motor 22 kW
- Width of guide ways 750mm
- Max torque 44 KN.m
If you require additional information on this machine
or on any other new or used lathe (lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
