NLLSY262:

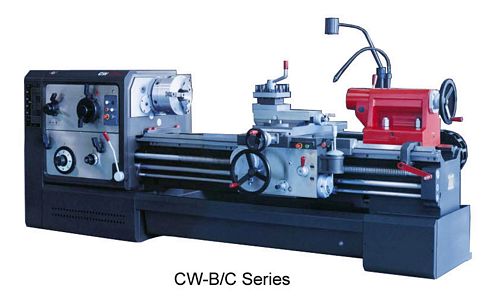

New, China CW6163C/4000 Straight Bed Lathe
- Between centers 4000mm
- Swing over bed 630mm
- Swing over saddle 350mm
- Spindle bore and nose Ø130; D11
- Taper in spindle nose and centre Ø140 Mores 5
- Range of spindle speed 8.5 - 800 r/min (18 kinds)
- Range of longitudinal feed 0.05 - 24.3 mm/r (64 kinds)
- Range 1:1 = 0.1 - 1.52 mm/r
- Range 16:1 = 1.6 - 24.3 mm/r
- Longitudinal and cross feed rate 1/2
- Rapid traverse of carriage 4000 mm/min
- Lead screw pitch 12 (Metric); 1/2"
- Threads: Metric 1 - 240 mm (50 kinds); Inch 14 - 1 TPI (26 kinds)
Module 0.5 - 120 mm (53 kinds); Diametric 28 - 1 DP (24 kinds)
- Max cross travel of lower slide 315mm
- Max travel of top slide 200mm
- Max travel of quill of tailstock 250mm
- Taper of quill of tailstock Morse No. 5
If you require additional information on this machine
or on any other new or used lathe (lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
