NLLTK005:

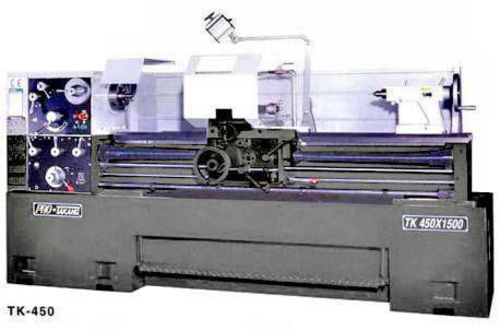

New, Takang TK540 x 1000 High Speed Precision Lathe
- Swing over bed 540mm
- Swing over saddle 360mm
- Swing over gap 680mm
- Between centres 1000mm
- Spindle bore 85mm
- Spindle nose D1 - 8, A2 - 11 (opt.)
- Spindle speeds (steps) 24 - 1520 RPM (18)
- Spindle motor (option) 10 HP (15 HP)
- Lead screw 6mm / pitch (4 TPI)
- Metric / pitch, range (numbers) 0.5 - 7mm (24)
- Inch, range (numbers) 4 / 56 TPI (36)
- Module / pitch, range (numbers) 0.25 - 3.5 M (16)
- DP, range (numbers) 8 - 112 P (36)
- Longitudinal feeds, mm/rev. 0.06 - 0.88
- Cross feeds, mm/rev. 0.03 - 0.44
- Quill diameter / centre taper 75mm / MT5
- Travel 170mm
- Bed width 350mm
- Cross slide travel 305mm
- Compound rest travel 150mm
- Coolant pump motor 1/8 HP
- Overall Dimensions: 2,290 mm (L) x 1,150 mm (W) x 1,750 mm (H)
- Weight approximately 2.7 ton
If you require additional information on this machine
or on any other new or used lathe (lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
