NLLYN002:

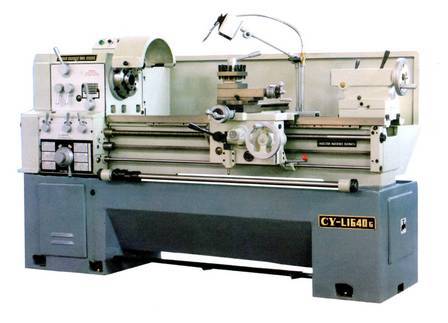

New, China CY-L1640G High Speed Gap Bed Lathe
- Swing Over Bed 410mm
- Swing Over Cross Slide 258mm
- Distance between Centres 1000mm
- Swing In Gap/Width of Gap 580mm
- Width of Bed 274mm
- Spindle Nose D6
- Spindle Bore Diameter 52mm
- Morse Taper of Spindle Centre M6
- Spindle Speed 33-2000 RPM (16 step)
- Metric Threads 0.5 - 7mm
- Range of Longitudinal Feed 0.08-1.15mm/rev
- Range of Cross Feed 0.06-0.92mm/rev
- Tailstock Centre Taper M4
- Cross Slide Travel 220mm
- Top Slide Travel 100mm
- Max. Travel of Tailstock Quill 100mm
- Tailstock Quill Diameter 52 mm
- Main Motor 5.5kW
- Coolant Pump Motor 0.1kW
- Gross/Net Weight 1720/1400 kgs
If you require additional information on this machine
or on any other new or used lathe (used lathe, metal lathe, gap bed lathe, straight bed lathe, facing lathe, oil country lathe, engine lathe, center lathe, turning lathe, brake lathe, mini lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
