NMCKM001:

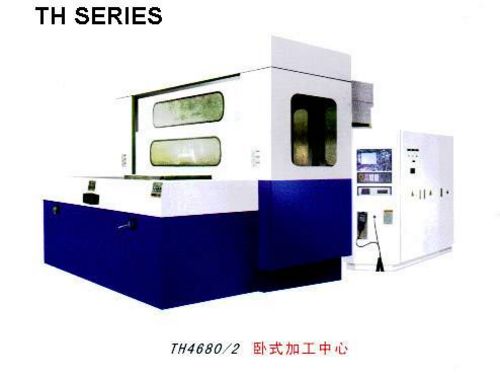

New, China THM4680 CNC Horizontal Machining Center
- Table Size (L x W) 800 x 800 mm
- Pallet Number 1
- Max. Load of Table 2000 kg
- Spindle Diameter 100 mm
- Spindle Taper ISO 50#
- Spindle Speed 12-3600 RPM
- Power of Spindle Motor (Rated /30Min) 15/18.5 kW
- Max. Torque of Spindle 750 N.m
- Max. Spindle Thrust 9435 N
- Transverse Travel of Table 1200 mm
- Vertical Travel of Spindle Head 1000 mm
- Longitudinal Travel of Column 800 mm
- Table Rotation 360 degrees
- ATC Capacity 40
- CNC System SIEMENS 840D(FANUC 18i)
- Weight approximately 24 ton
If you require additional information on this machine
or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc vertical miller, milling center, milling centre) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
