NMCSY002:

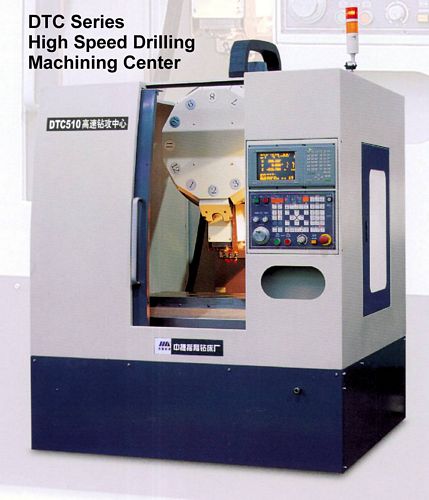

New, China Czech DTC510 High Speed Drilling Machining Center
- Table Size 600x360 mm
- Max Table Load 200 kg
- X / Y / Z Traverse 510 x 350 x 300 mm
- Distance Spindle Nose to Table 170-470 mm
- Spindle Taper BT30
- Spindle Speed 240-8000 RPM
- Max Spindle Torque 23.5 Nm
- Power of Main Motor 3.7/5.5 kW
- Spindle Diameter 45 mm
- Rapid Traverse: X & Y 36 m/min, Z 30 m/min
- Tool Magazine Type Circle (Armless)
- Tool Magazine Capacity 12
- Tool Magazine Max Tool Weight 3 kg
- Tool Magazine Max Tool Length 200 mm
- Tool Change Time 2 s
- Positioning Accuracy X, Y, Z: +/- 0.01/300 mm (JISB6330 Standard)
- Repeatability X, Y, Z: +/- 0.003 mm (JISB6330 Standard)
- Total Power Capacity 15 kVA
- CNC Control: Mitsubishi or Fanuc
- Weight approximately 2.4 ton
If you require additional information on this machine
or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc vertical miller, milling center, milling centre) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
