NMCSY005:

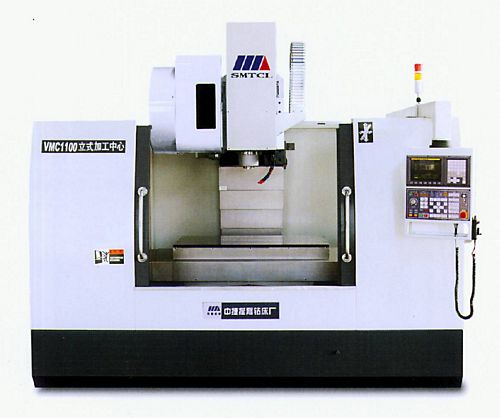

New, China Czech VMC1100 Vertical Machining Center
- Table Size 1200x610 mm
- Max Table Load 700 kg
- X / Y / Z Traverse 1100 x 650 x 610 mm
- Distance Spindle Nose to Table 130-740 mm
- Spindle Taper BT40/50
- Spindle Speed 60-8000 RPM
- Max Spindle Torque 47.7 Nm
- Power of Main Motor 7.5/11 kW
- Cutting Feed Speed 1-10000 mm/min
- Rapid Traverse: X & Y 24 m/min, Z 18 m/min
- Tool Magazine Max Tool Length 200 mm
- Tool Magazine Type: Circle / Hat
- Tool Magazine Capacity: Circle 24 / Hat 20
- Max Diameter in Tool Magazine: 80 mm (150 mm If Adjacent Packet Empty)
- Tool Change Time: Circle 3.5 s / Hat 7 s
- Positioning Accuracy X, Y, Z: +/- 0.01/300 mm (JISB6192 Standard)
- Repeatability X, Y, Z: +/- 0.003 mm (JISB6192 Standard)
- Total Power Capacity 20 kVA
- CNC Control Fanuc 0i
- Overall Dimensions: 3,100 mm (L) x 3,100 mm (W) x 2,710 mm (H)
- Weight approximately 7.7 ton
If you require additional information on this machine
or on any other new or used cnc milling machine (machining center, machining centre, vmc, hmc, cnc miller, cnc vertical miller, milling center, milling centre) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
