NMOVH001:

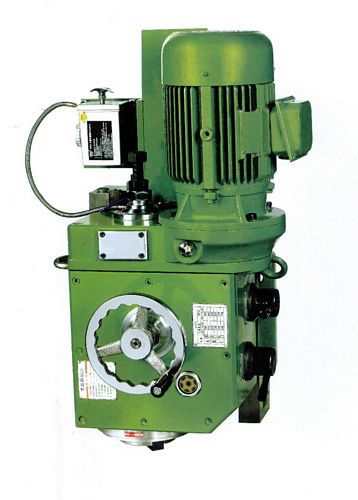

New, China TEM-V5 Milling Head
- Spindle motor 3 Phase 4 Positive 4 kW, 5.5HP, 5.5 kW, 7.5HP
- Taper of Spindle Nose N.T.No.50
- Diameter of Spindle Nose 128.57 mm
- Steps of Spindle Speeds 6 section
- Spindle Speeds 4P 50 c/s 130, 270, 220, 375, 470, 785 R.P.M
- Max. Diameter of Cutter 150 mm
- Vertical Travel 250 mm
- Reversal Slide 4mm/rev 0.02 mm
- Weight 275 kg
If you require additional information on this machine
or on any other new or used milling accessories (milling head) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
