NMOVH011:

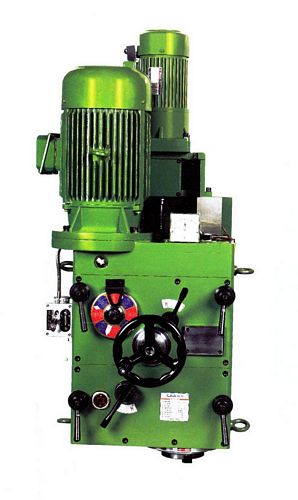

New, China TEM-U12 Milling Head
- Spindle motor 3 phase 4 positive 11 kW
- Taper of spindle nose N.T.No.50
- Diameter of spindle nose 128.57 mm
- Steps of spindle speeds 8 section
- Spindle speeds 4P 50 c/s 66, 90, 112, 182, 240, 330, 442, 660 RPM
- Max. diameter of cutter 200 mm
- Vertical travel 350 mm
- Reversal slide 2mm/rev 0.01 mm
- Weight 625 kg
If you require additional information on this machine
or on any other new or used milling accessories (milling head) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
