NMTES004:

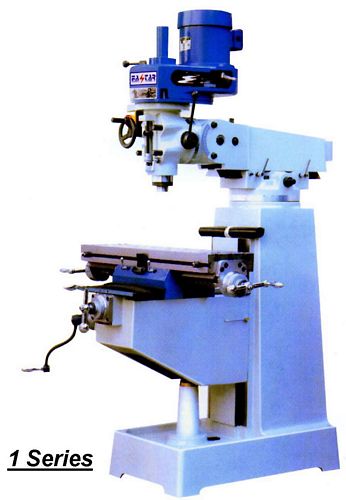

New, Taiwan 1VA Vertical Turret Milling Machine
- Table size 228 x 889mm
- Longitudinal travel 520mm (manual or power feed)
- Cross travel (Y) 305mm
- Knee travel (Z) 400mm
- Distance from spindle center to column face 160 - 480mm
- Over arm travel 300mm
- Quill travel/diameter 127mm/85.7mm
- Quill feeds 0.04, 0.08, 0.15 mm/rev
- Spindle speeds (60 Hz) Variable speeds 70 -4200 rpm
- Spindle taper R8
- Spindle motor 3 HP
- Standard Accessories:
- Tool box with tools, One shot lubrication, Arbor draw bar, Chip covers (front and rear), Forward/off/reverse switch
If you require additional information on this machine
or on any other new or used turret milling machine (vertical turret milling machine, turret miller) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
