NMVES001:

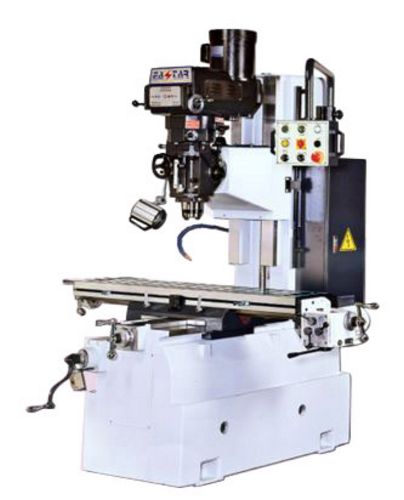

New, Taiwan BM-1054S Bed Type Milling Machine
- Table size 250 x 1370mm
- Longitudinal travel (X) manual 1000mm, (X) power feed 900mm
- Cross travel (Y) 457mm
- Vertical travel (Z) 600mm
- Distance from spindle nose to table 0 - 645mm
- Spindle taper ISO40
- Spindle speeds (60 Hz) 80 - 3600 rpm
- Number of speed 10 speeds
- Stroke of quill 127mm
- Quill power feed rate 0.04, 0.08, 0.15 mm/rev
- Distance from spindle center to column 395mm
- Swivelling angle of head (R&L) +- 45°
- Spindle driving motor 5 HP
- Z axis rapid lifting motor 1/2 HP
- Coolant pump motor 1/8 HP
- Floor space 2870 x 2000mm
- Standard Accessories: Square (Y) & (Z) axis slide ways, Harden/Ground slide ways, Saddle coated with Turcite-B on X & Y axis, Z axis rapid lifting motor, Electric control box and panel, Coolant pump, Coolant tray, Automatic lubrication, Halogen lamp
- Overall Dimensions: 1,570 mm (L) x 1,470 mm (W) x 2,540 mm (H)
If you require additional information on this machine
or on any other new or used vertical milling machine (vertical miller, vertical milling machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
