NRSES012:

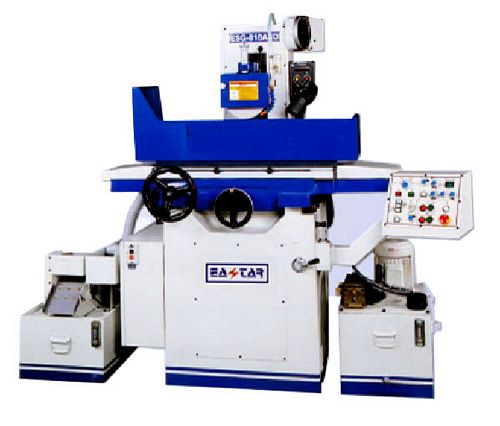

New, Taiwan ESG-818M Precision Surface Grinder
- Working table surface 203 x 460mm
- Max grinding length (longitudinal) 480mm
- Max grinding width (crosswise) 228mm
- Max distance from table surface to spindle center 460mm
- Standard magnetic chuck size 200 x 450mm
- Longitudinal movement of table:
Max travel (hydraulic) 480mm
Max travel (manual) 510mm
Max travel (infinitely variable): 5 - 25 m/min (60 Hz); 5 - 20 m/min (50 Hz)
- Auto transverse increment 1 - 10 mm
- Auto constant feeding speed 20 - 320 mm/min
- Handwheel per graduation 0.02 mm
- Grinding spindle drive: Speed (60 Hz) 3450 RPM; (50 Hz) 2850 RPM
Power rating 2 HP
- Standard grinding wheel: diameter 203mm; width 12.7mm; bore 31.75mm
- Hydraulic motor 1HP x 6P
- Power 3 HP
- Overall Dimensions: 1,890 mm (L) x 1,540 mm (W) x 1,930 mm (H)
- Weight approximately 1.2 ton
If you require additional information on this machine
or on any other new or used surface grinding machine (surface grinder, horizontal grinder, plain grinder, plough grinder, cylinder head grinder, slideway grinder, slab grinder, surface grinding machine, surface grinders) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
