NSLES003:

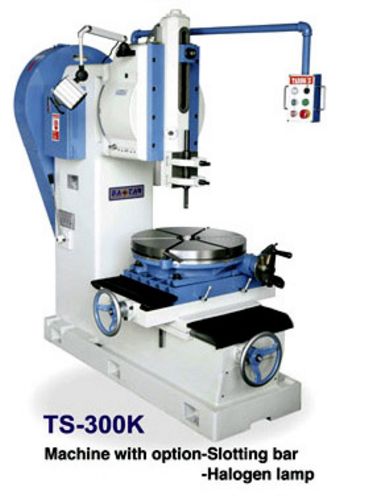

New, Taiwan TS-300K Precision Slotting Machine
- Max Stroke 300mm (12")
- Max keyway width per cut :16~18mm (100mm stroke)
- Max Throat Distance 510mm (20")
- Working Table Diameter 560mm
- Inner Hole Diameter of Table 75mm
- Distance between Floor to Table Surface 760mm
- Ratio of Indexing 1:80
- Stroke Speeds (60 HZ) 28-48-73-105; (50 HZ) 23-40-61-87
- Vertical Ram Travel 320mm (12.5")
- Swivel Angle of Head 30 Degrees
- Distance Between End of Ram Guideway And Work Table 365mm (14")
- Longitudinal Travel of Working Table 460mm (18")
- Cross Travel of Working Table 460mm (18")
- Main Motor 3 HP 4P
- Overall Dimensions: 1,900 mm (L) x 1,100 mm (W) x 2,000 mm (H)
- Weight approximately 1.6 ton
If you require additional information on this machine
or on any other new or used slotter (slotter, slotting machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
