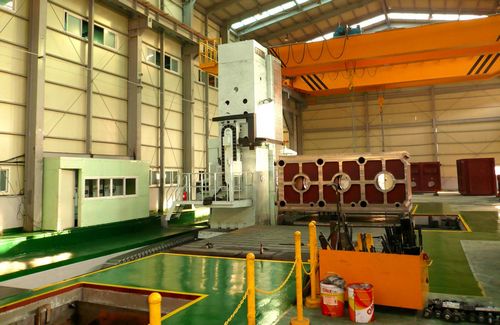

NBFKM014: New, China TK6920 Floor Type Boring Machine
- Dia. of Boring Spindle 200 mm
- Dia. of Milling Spindle 300 mm
- Spindle Taper ISO 60#
- Spindle Speed 2 - 1250 RPM
- Power of Spindle Motor 60/71 kW
- Max. Torque of Boring Spindle 6000 N.m
- Max. Axial Resisting Power 55000 N
- Max. Torque of Milling Spindle 12200N.m
- Ram Size (L x W) 480 x 580 mm
- Cross Travel of Column (X) 10000 mm
- Vertical Travel of Spindle Head (Y) 4000 mm
- Ram Travel (Z) 1100 mm
- Axial Travel of Spindle (W) 1200 mm
- Power of Feed Motors X: 14.7, Y: 10.5, Z: 10.5, W: 10.5 kW
- Rapid Traverse X: 8000, Y: 6000, Z: 4000, W: 4000 mm/min
- Repeatability X,Y,Z,W 0.02/1000 mm
- CNC System SIEMENS 840D
- Overall Dimensions: 16,360 mm (L) x 7,455 mm (W) x 8,480 mm (H)
- Weight approximately 128 ton
If you require additional information on this machine
or on any other new or used floor boring machine (ram borer, floor boring machine, travelling borer, traveling boring mill) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
