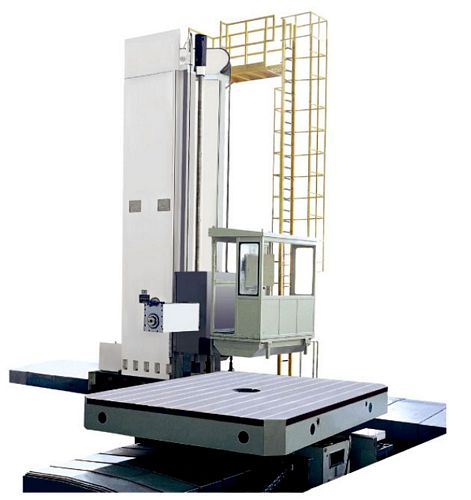

NBFKM017: New, China TH6913 Floor Type Boring Machine
- Dia. of Boring Spindle 130 mm
- Dia. of Milling Spindle 221.44 mm
- Spindle Taper ISO 50#
- Spindle Speed 6 - 1500 RPM
- Power of Spindle Motor 37/51 kW
- Max. Torque of Boring Spindle 3500 N.m
- Max. Axial Resisting Power 35000 N
- Max. Torque of Milling Spindle 5000 N.m
- Ram Size (L x W) 420 x 480 mm
- Cross Travel of Column (X) 6000 mm
- Vertical Travel of Spindle Head (Y) 2000 mm
- Ram Travel (Z) 800 mm
- Axial Travel of Spindle (W) 800 mm
- Power of Feed Motors X: 8.7, Y: 8.7, Z: 4.7, W: 4.7 kW
- Rapid Traverse X: 8000, Y: 8000, Z: 6000, W: 4000 mm/min
- Repeatability X,Y,Z,W 0.025 mm
- CNC System FANUC 18i
- Overall Dimensions: 11,000 mm (L) x 3,000 mm (W) x 6,200 mm (H)
- Weight approximately 65 ton
If you require additional information on this machine
or on any other new or used floor boring machine (ram borer, floor boring machine, travelling borer, traveling boring mill) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
