NBFSY002:

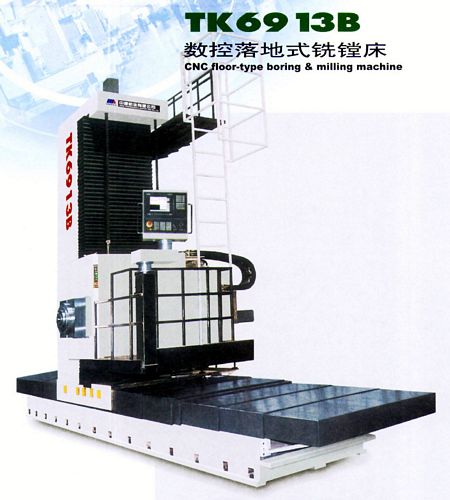

New, China CNC Floor Boring & Milling Machine
- Spindle Dia 130 mm
- Column Long Traverse 4000 mm
- Vertical Traverse 2500 mm
- Spindle Traverse 700 mm
- Ram Traverse 700 mm
- Spindle Taper ISO 50
- Spindle Speeds 10-1500 RPM
- Power of Main Motor 37/51 kW
- Max Spindle Torque 2500 Nm
- Cutting Feed: X & Y = 1-6000 mm/min, Z & W = 1-1300 mm/min
- Rapid Traverse X & Y = 6 m/min, Z & W = 3 m/min
- Positioning Accuracy X & Y = 0.026/1000 mm, Z & W = 0.03 mm over full length
- Repeatability 0.013/1000 mm
- Total Power 85 kVA
- CNC System Siemens 840DE
If you require additional information on this machine
or on any other new or used floor boring machine (ram borer, floor boring machine, travelling borer, traveling boring mill) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
