NBHKM008:

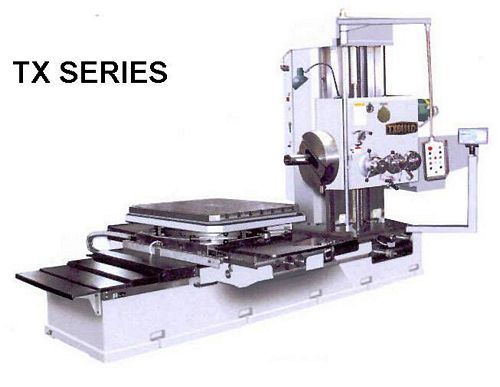

New, China TX6113C Horizontal Boring Machine
- Spindle Diameter 130 mm
- Spindle Taper ISO 50
- Spindle Speed 6.6-755 RPM
- Power of Main Drive Motor 11 kW
- Max. Drilling Capacity of Spindle 80 mm
- Max. Boring Capacity of Spindle 350 mm
- Speed of Facing Chuck 4.4-165 RPM (14 Step)
- Travel of Facing Chuck Slide 200 mm
- Max. Boring Capacity of Facing Chuck 700 mm
- Table Size (L X W) 1600 X 1400 mm
- Max. Load of Table 8000 kg
- Transverse Travel of Table (X) 1800 mm
- Vertical Travel of Spindle Head (Y) 1600 mm
- Longitudinal Travel of Table (Z) 2000 mm
- Axial Travel of Spindle 900 mm
- Feed Rates 0.04-6 mm/rev (12 Steps)
- DRO X, Y, Z, B
- Overall Dimensions: 7,520 mm (L) x 4,104 mm (W) x 4,085 mm (H)
- Weight approximately 31 ton
If you require additional information on this machine
or on any other new or used horizontal borer (horizontal boring mill, horizontal boring machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
