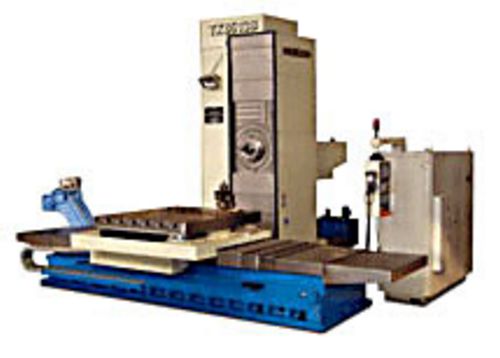

NBHKM013: New, China TJK6513 CNC Horizontal Boring Machine
- Boring Spindle Dia. 130 mm
- Dia. of Milling Machines 221.44 mm
- Spindle Taper ISO 50#
- Spindle Speed 2-1500 RPM
- Power of Spindle Motor(Rated/30Min) 37 RPM
- Max. Torque of Boring Spindle 2500 N.m
- Max. Spindle Thrust 25000 N
- Max. Torque of Milling Spindle 3500 N.m
- Ram Size(L X W) 420 X 480 mm
- Table Size(L X W)2000 X 2000 mm
- Max. Load of Table 20000 kg
- Transverse Travel of Table 2500 mm
- Vertical Travel of Spindle Head 2000 mm
- Longitudinal Travel of Column 1500 mm
- Axial Travel of Spindle 800 mm
- Ram Travel 800 mm
- Table Rotation 360 Degrees
- CNC System FAGOR 8055M
- Weight approximately 42 ton
If you require additional information on this machine
or on any other new or used horizontal borer (horizontal boring mill, horizontal boring machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
