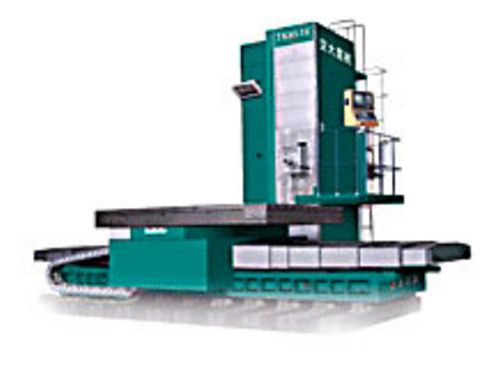

NBHKM019: New, China TJK6516B CNC Horizontal Boring Machine
- Boring Spindle Dia. 160 mm
- Dia. of Milling Spindle 260 mm
- Spindle Taper ISO 50#
- Spindle Speed 7-1500 RPM
- Power of Spindle Motor(Rated/30Min) 37 RPM
- Max. Torque of Boring Spindle 2865 N.m
- Max. Spindle Thrust 20000 N
- Max. Torque of Milling Spindle 3000 N.m
- Table Size(L X W) 2000 X 2000 mm
- Max. Load of Table 15000 kg
- Transverse Travel of Table 2000 mm
- Vertical Travel of Spindle Head 2000 mm
- Longitudinal Travel of Column 1550 mm
- Axial Travel of Spindle 900 mm
- Table Rotation 360 Degrees
- CNC System FAGOR 8055m
- Weight approximately 40 ton
If you require additional information on this machine
or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine) that we carry,
please let us know. We would be more than happy to assist.
For sales enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
