Sunshine Innovation Sams Horizontal Borer

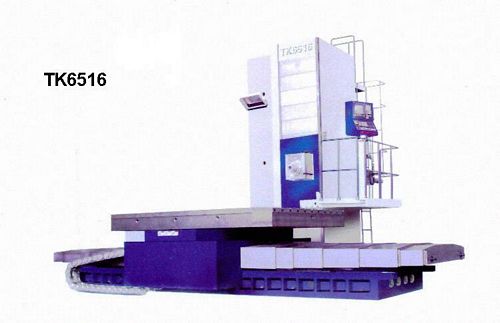

China TK6516A CNC Horizontal Boring Machine

NBHKM028:

New, China TK6516A CNC Horizontal Boring Machine

  • Boring Spindle Dia. 160 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 7-1500 RPM
  • Power of Spindle Motor (Rated/30Min) 37/51 RPM
  • Max. Torque of Boring Spindle 3500N.m
  • Max. Spindle Thrust 20000 N
  • Speed of Facing Chuck 5 - 125 RPM
  • Table Size(L x W) 2000 x 2000 mm
  • Max. Load of Table 15000 kg
  • Transverse Travel of Table 2000 mm
  • Vertical Travel of Spindle Head 2000 mm
  • Longitudinal Travel of Column 1500 mm
  • Axial Travel of Spindle 900 mm
  • Traverse of Facing Chuck Slide 300 mm
  • Table Rotation 360 degrees
  • CNC System SIEMENS 840D (FANUC 18i)
  • Weight approximately 40 ton
Sales Enquiry Price Request

The above used (second hand) machine is available from Sunshine Innovation for IMMEDIATE sale. The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
