NBHSY107:

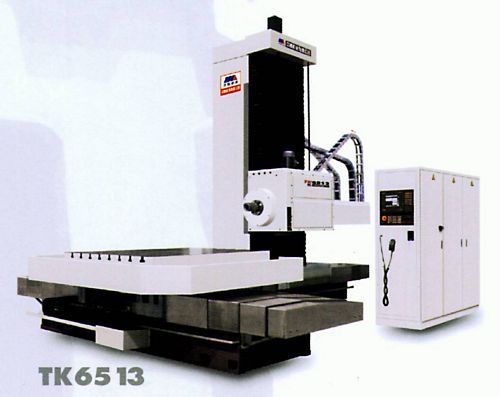

New, China Czech TK6513 CNC Horizontal Boring & Milling Machine
- Spindle Diameter 130 mm
- Table Size 1400x1600 mm
- Max Load on Table 10000 kg
- Spindle Taper ISO7:24 No.50
- Spindle Speed 10-2000 RPM
- Max Torque 2000 Nm
- Distance Between Spindle Axis And Table Top 100-1700 mm
- Min Distance Between Spindle End And Table 17 mm
- Table X Traverse 2000 mm (Opt. 2500, 3000)
- Headstock Y Travel 1600 mm (Opt. 2000)
- Column Z Travel 1600 mm (Opt. 2000)
- Spindle W Travel 800 mm
- Rotation B of Rotary Table 360 Deg
- Traverse Speed (mm/min): X / Y / Z 1-6000, W 1-3000, B 0-1 r/min
- Rapid Traverse: X / Y / Z 9 m/min, W 3 m/min, B 1 r/min
- Power of Main Motor 22 kW (30 kW for 30 min continuous)
- AC Servomotors Rated Torque: X/Z/W/B 38 Nm, Y 55 Nm, U 23 Nm
- Positioning Accuracy X / Y / Z: +/- 0.008 mm Over Full Length (Opt. +/- 0.005)
- Positioning Accuracy B (4 X 90 Deg): +/- 7.5" (Opt. +/- 2")
- Repeatability X / Y / Z: +/- 0.005 mm (Opt. +/- 0.0025), B (4 X 90 Deg): +/- 2"
- CNC System Siemens 840D (Opt. Fanuc 18i)
- Overall Dimensions: 6,800 mm (L) x 6,230 mm (W) x 4,530 mm (H)
- Weight approximately 35 ton
