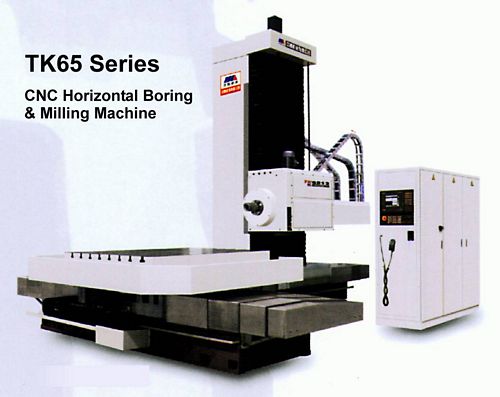

New, China Czech TK6516 CNC Horizontal Boring & Milling Machine

• Spindle Diameter 160 mm
• Table Size 1600x1800 mm (Opt. 2000x2500)
• Max Load on Table 10000 kg (Opt. 20000)
• Spindle Taper ISO7:24 No.50
• Spindle Speed 5-1500 RPM
• Max Torque 3500/4800 Nm
• Distance Between Spindle Axis And Table Top 100-1700 mm
• Min Distance Between Spindle End And Table 17 mm
• Table X Traverse 2500 mm
• Headstock Y Travel 2000 mm (Opt. 2500, 3500)
• Column Z Travel 2000 mm (Opt. 3000)
• Spindle W Travel 1000 mm
• Rotation B of Rotary Table 360 Deg
• Traverse Speed: X / Y / Z 1-6000 mm/min, W 1-3000 mm/min, B 0-1 r/min
• Rapid Traverse: X / Y / Z 9 m/min, W / U 3 m/min, B 1 r/min
• Power of Main Motor 37 kW (51 kW for 30 min continuous)
• AC Servomotors Rated Torque: X/Z/W/B 38 Nm, Y 55 Nm
• Positioning Accuracy X / Y / Z: +/- 0.008 mm Over Full Length (Opt. +/- 0.005)
• Positioning Accuracy B (4 X 90 Deg): +/- 7.5" (Opt. +/- 2")
• Repeatability X / Y / Z: +/- 0.005 mm (Opt. +/- 0.0025), B (4 X 90 Deg): +/- 2"
• CNC System Siemens 840D (Opt. Fanuc 18i)
• Overall Dimensions: 6,800 mm (L) x 6,230 mm (W) x 4,930 mm (H)
• Weight approximately 40 ton
