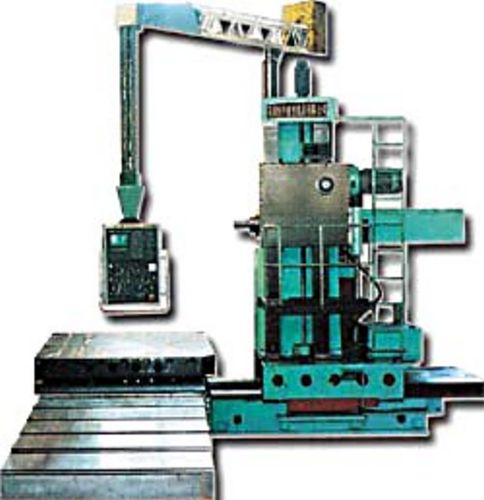

NBHSY113: New, China Czech TK6813 CNC Ram Type Boring & Milling Machine

• Ram Size 480x480 mm
• Spindle Diameter 130 mm
• Table Size 2000x2000 mm
• Max Load on Table 10000 kg
• Worktable T-Slot 28 mm X 9
• Spindle Taper ISO7:24 No.50
• Spindle Speed 10-1500 RPM
• Max Torque 2500 Nm
• Distance Between Spindle Axis And Table Top 260-2260 mm
• Min Distance Between Spindle End And Table 1033 mm
• Table X Traverse 2000 mm (Opt. 2500, 3000)
• Headstock Y Travel 2000 mm (Opt. 2500)
• Column Z Travel 2000 mm (Opt. 3000)
• Spindle W Travel 700 mm
• Ram Z1 Travel 700 mm
• Rotation B of Rotary Table 360 Deg
• Traverse Speed: X / Y / Z 1-6000 mm/min, Z1 / W 1-3000 mm/min, B 0-1 r/min
• Rapid Traverse: X / Z 9 m/min, Y 6 m/min, Z1 / W 3 m/min, B 1 r/min
• Power of Main Motor 37 kW (51 kW for 30 min continuous)
• AC Servomotors Rated Torque: X/B 38 Nm, Y/Z/W 55 Nm
• Positioning Accuracy X / Y / Z: +/- 0.008 mm Over Full Length (Opt. +/- 0.005)
• Positioning Accuracy B (4 X 90 Deg): +/- 7.5" (Opt. +/- 2")
• Repeatability X / Y / Z: +/- 0.005 mm (Opt. +/- 0.0025), B (4 X 90 Deg): +/- 2"
• CNC System Siemens 840D (Opt. Fanuc 18i)
• Total Power 70 kVA
• Overall Dimensions: 7,600 mm (L) x 6,300 mm (W) x 5,300 mm (H)
• Weight approximately 41 ton
